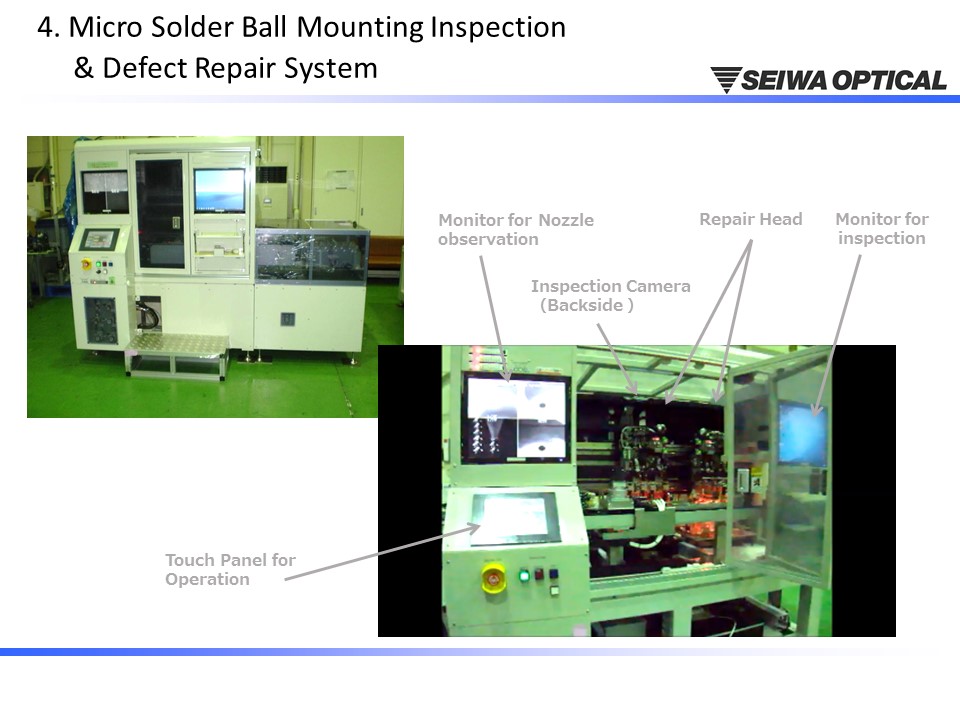

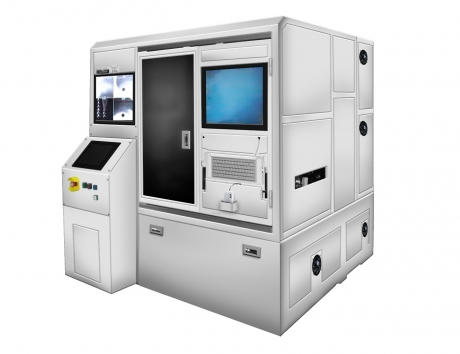

Micro Solder Ball Repair Equipment

Micro Solder Ball Repair Equipment

[Overview]

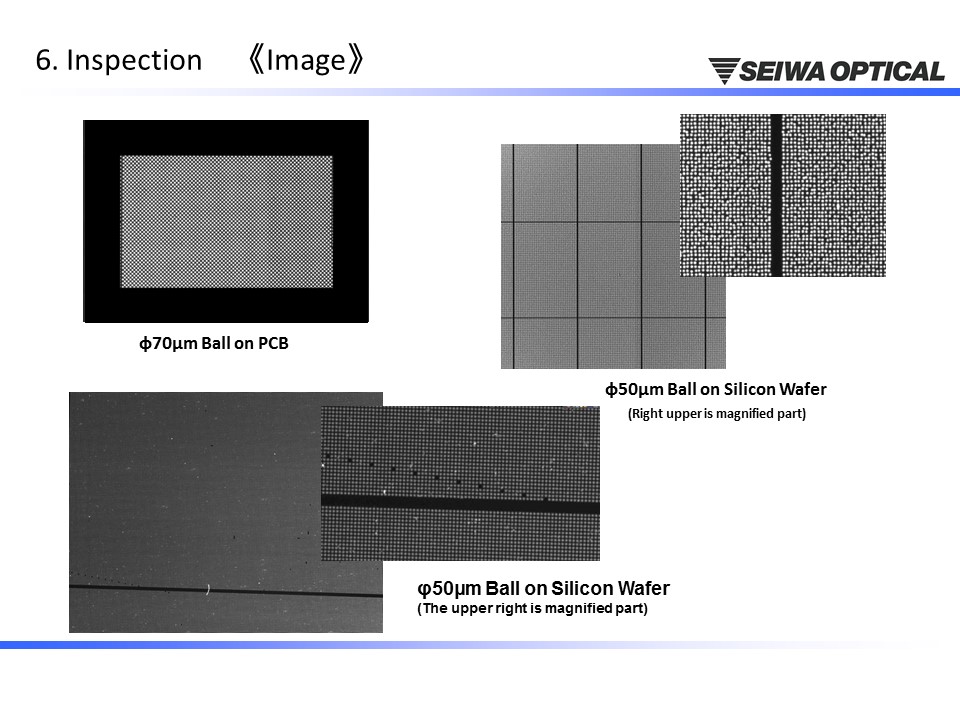

High-speed Micro Solder ball inspection and repair for high-density mounting printed circuit boards and wafers.

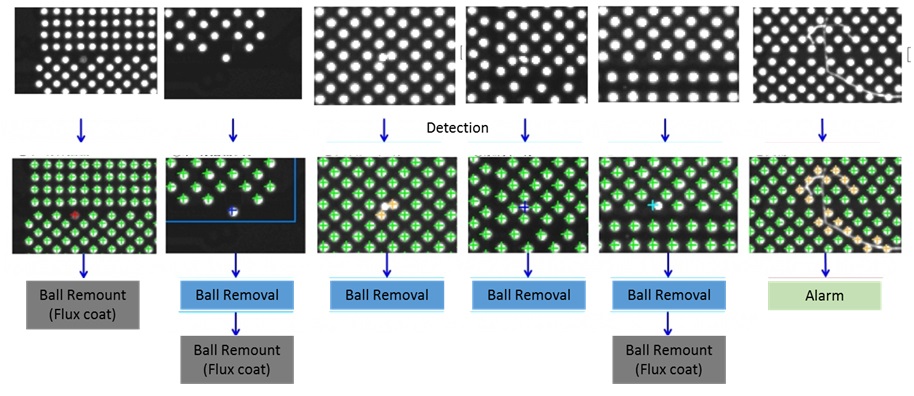

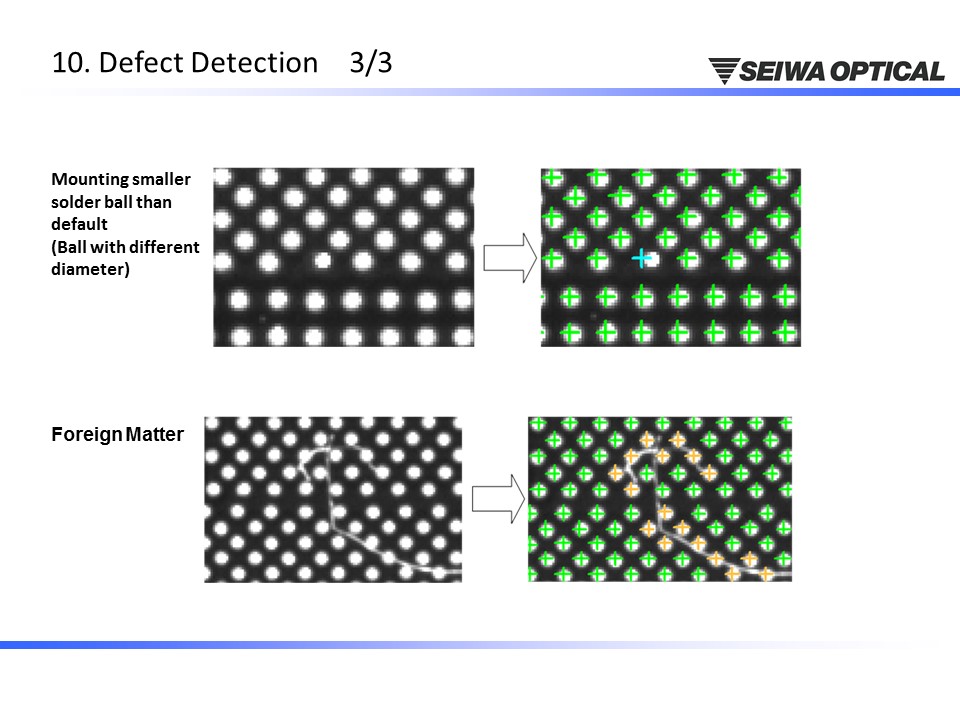

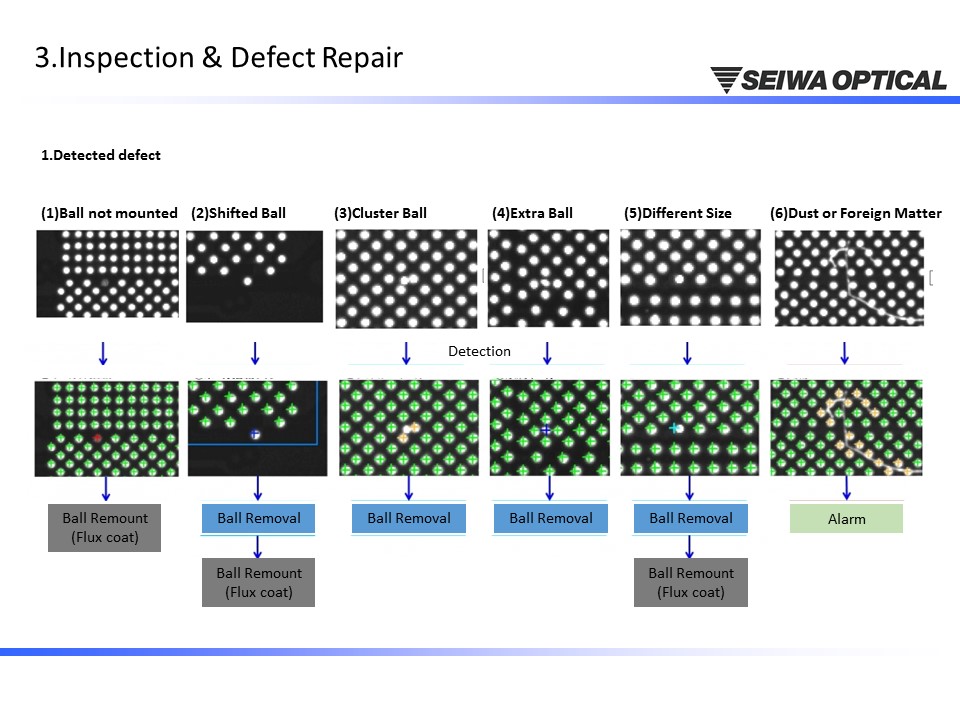

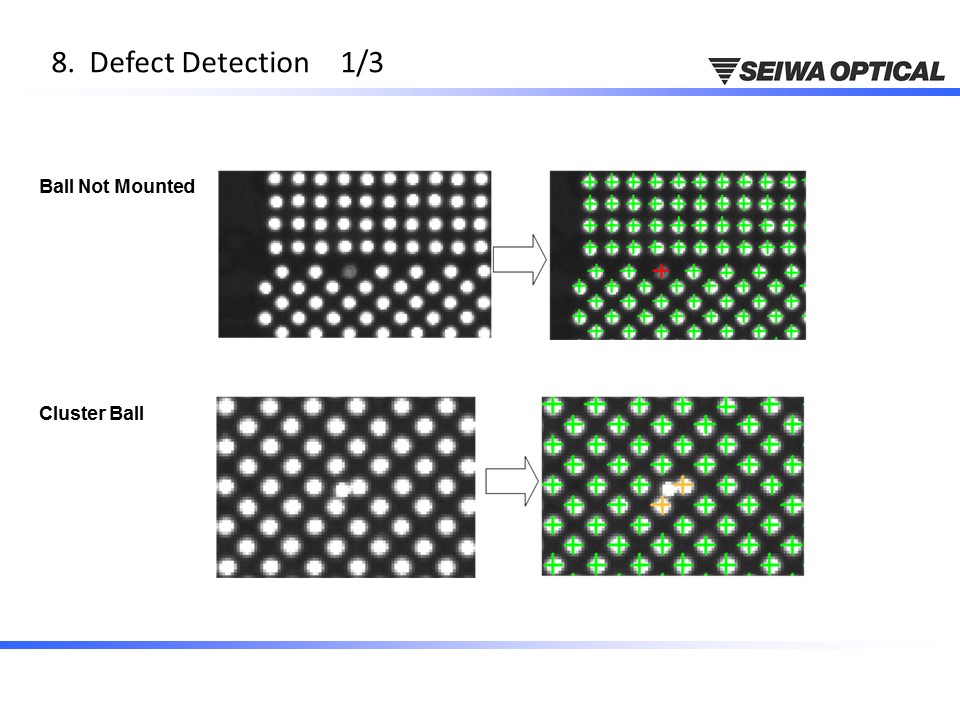

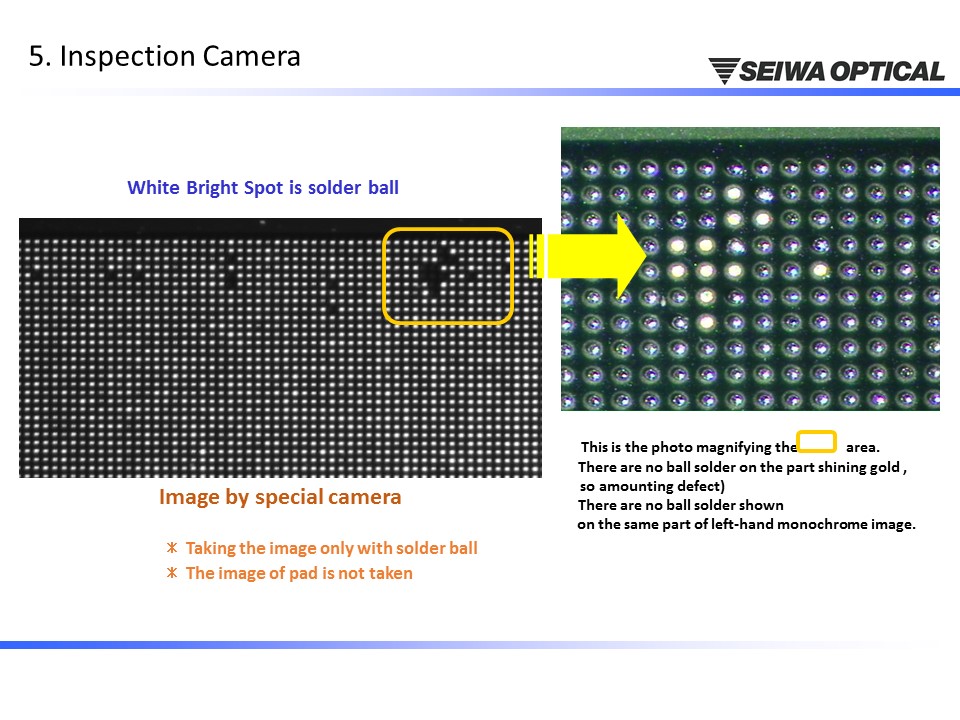

Detects non-ball mounted, mounting position shift, ball cluster, surplus ball, different diameter ball, Contamination, and performs high-speed repair

[Use]

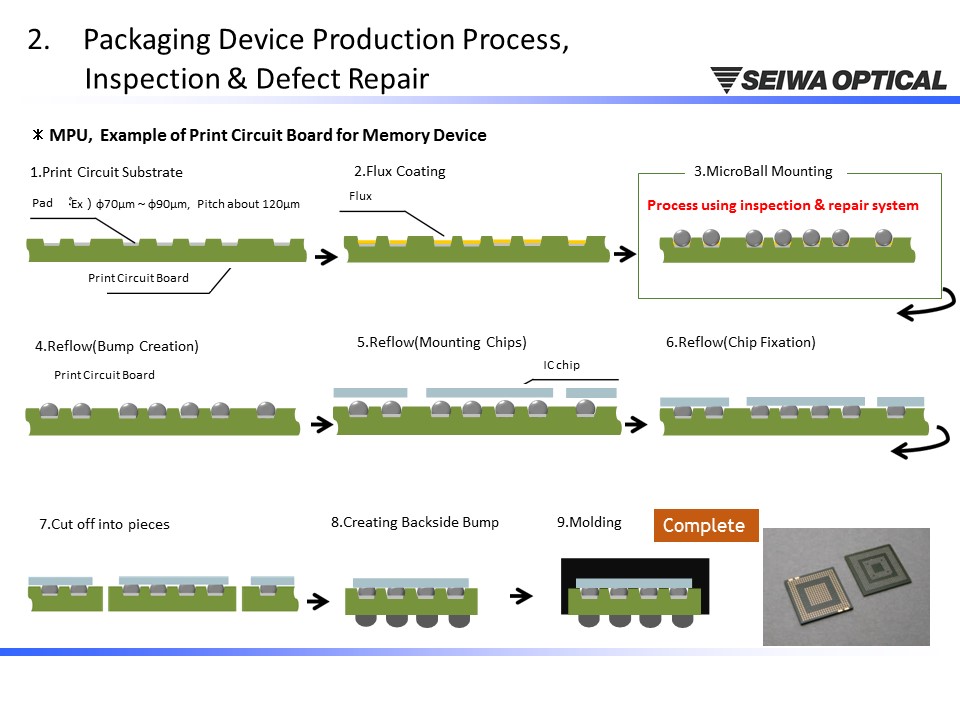

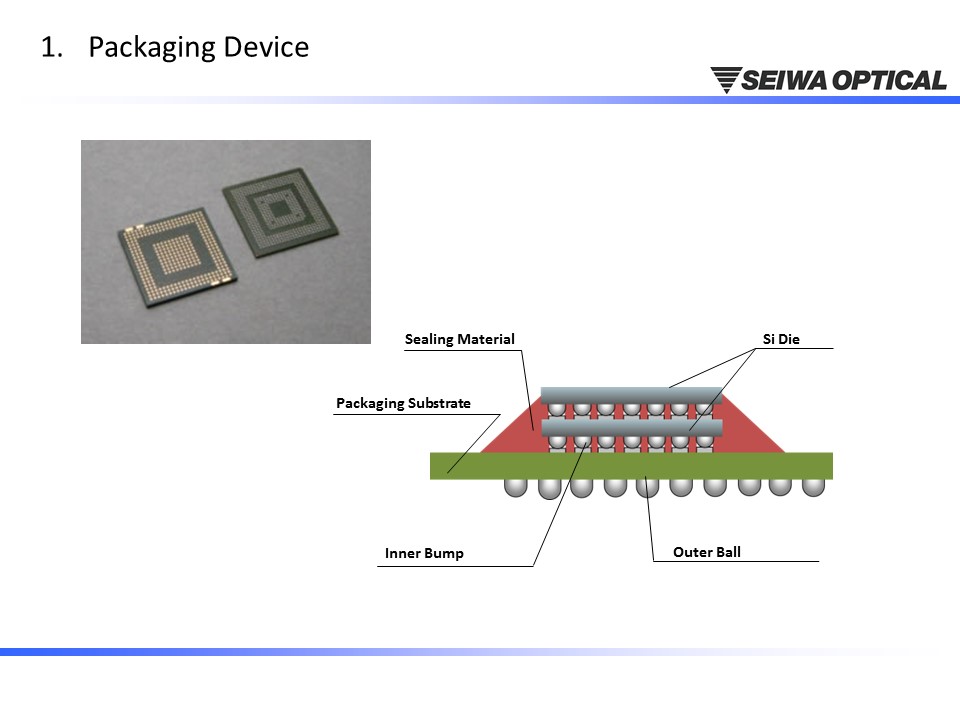

Bump formation process for package devices, FOWLP, etc.

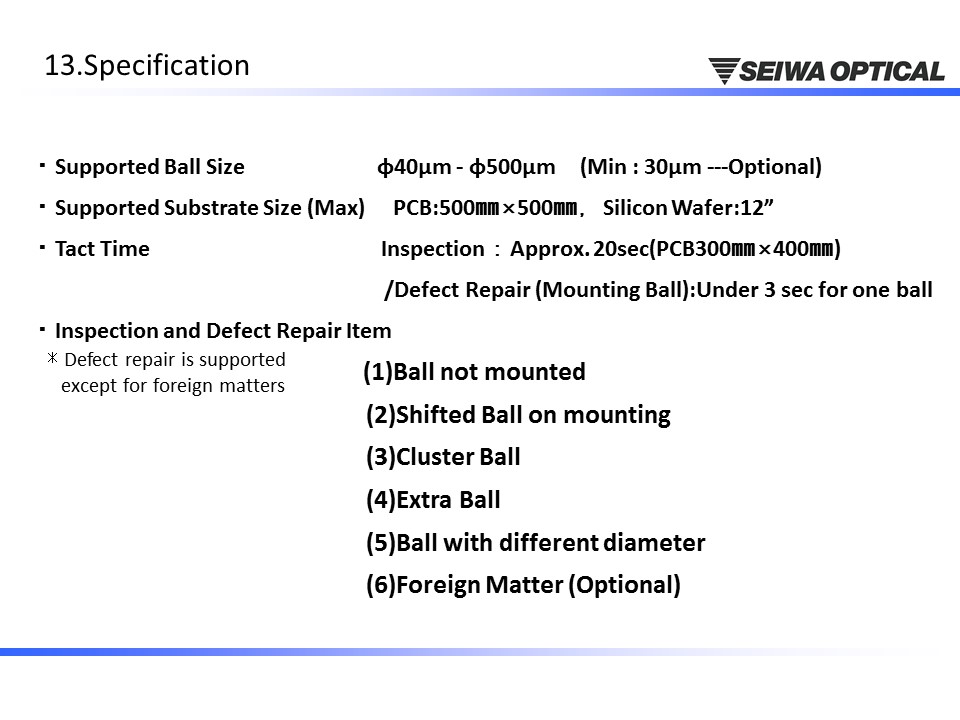

[Specification]
Corresponding ball size: φ40μm – φ500μm
—————————————————————-
Available board size PCB 500mmx500mm

Silicon wafer: 12inch
—————————————————————-
Inspection and defect correction items
