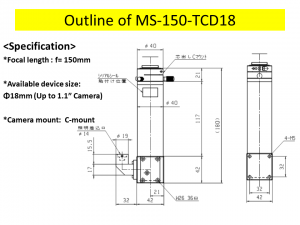

MS-150-TCD18

Coaxial tube lens (Infinity f=150mm)|This tube lens is available for 1 inch camera and enable the FOV to be wider comparing using infinity f=200mm.

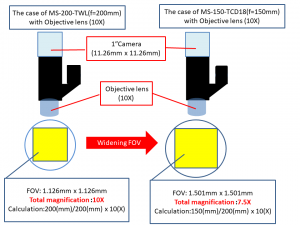

Comparison of magnification (MS-200-TWL vs MS-150-TCD18)

Model No
(Objective lens)		 WD(mm) N.A Magnification
( with MS-200-TWL)		 Magnification
(with MS-150-TCD18)
M Plan Apo 2.5X 32.5 0.06 2.5X 1.875X
M Plan Apo 5X 36.2 0.16 5X 3.75X
M Plan Apo 10X 38.9 0.23 10X 7.5X
M Plan Apo 20X 22.2 0.35 20X 15X
M Plan Apo 50X 18.3 0.4 50X 37.5X
M Plan Apo 100X 14.1 0.52 100X 75X
PEIR Plan 1X 12 0.03 1X 0.75X
PEIR Plan 2.5X 28 0.1 2.5X 1.875X
PEIR Plan 10X 30.4 0.27 10X 7.5X
PEIR Plan 20X 12 0.5 20X 15X
PEIR Plan 50X 10 0.6 50X 37.5X
PEIR Plan 100X 9.5 0.71 100X 75X
