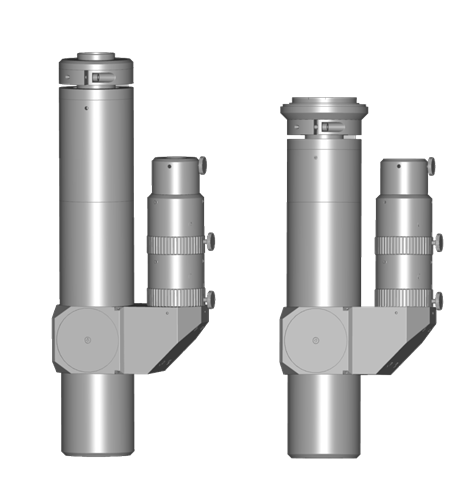

Infinity wide view microscope Unit MS-xxx-TC(D)26.5 Series

・Available wavelength range: 405nm – 1100nm

・18 variations  are available as standard model. It allows to choose most suitable specification such as “focal length (magnification) type”, “camera mount type, and “With / Without coaxial illumination”.

※Under development : focal length f=100mm

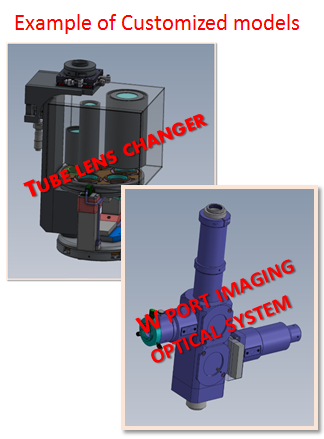

・It allows flexibly to customize for microscope unit by standardizing the distance from the lens image plane to the objective.



Model No	Focal length f[mm]	Built in Coaxial port	Camera mount
MS-100-TC16.5	100	N/A	N/A
MS-200-TC26.5	200	N/A	N/A
MS-400-TC26.5	400	N/A	N/A
MS-100-TCD16.5	100	Available	N/A
MS-200-TCD16.5	200	Available	N/A
MS-400-TCD16.5	400	Available	N/A
MS-100-TC16.5-C	100	N/A	C-mount
MS-200-TC26.5-C	200	N/A	C-mount
MS-400-TC26.5-C	400	N/A	C-mount
MS-100-TCD16.5-C	100	Available	C-mount
MS-200-TCD26.5-C	200	Available	C-mount
MS-400-TCD26.5-C	400	Available	C-mount
MS-100-TC16.5-F	100	N/A	F-mount
MS-200-TC26.5-F	200	N/A	F-mount
MS-400-TC26.5-F	400	N/A	F-mount
MS-100-TCD16.5-F	100	Available	F-mount
MS-200-TCD26.5-F	200	Available	F-mount
MS-400-TCD26.5-F	400	Available	F-mount
