NEO Ring LED

SHRA series

This Ring LED series is for High brightness and wide range.
The brightness of this series is 1.7times to 4.9times
higher than conventional one.

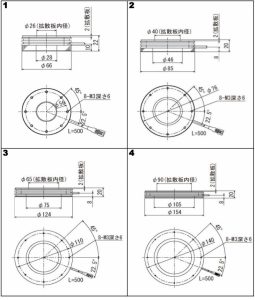

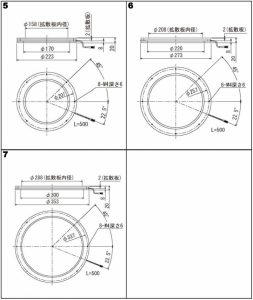

Model	Color	Power consumption(W)	Input voltage (V)	SAG (* Note)	Drawing
SHRA-60-RS	Red	6.5	DC12V	FF	1
SHRA-60-WS	White	6.5	DC12V	FF	1
SHRA-60-BS	Blue	6.5	DC12V	FF	1
SHRA-80-RS	Red	9	DC12V	FF	2
SHRA-80-WS	White	9	DC12V	FF	2
SHRA-80-BS	Blue	9	DC12V	FF	2
SHRA-120-RS	Red	13.5	DC12V	FF	3
SHRA-120-WS	White	13.5	DC12V	FF	3
SHRA-120-BS	Blue	13.5	DC12V	FF	3
SHRA-150-RS	Red	18	DC12V	FF	4
SHRA-150-WS	White	18	DC12V	FF	4
SHRA-150-BS	Blue	18	DC12V	FF	4
SHRA-220-RS	Red	28.5	DC12V	FF	5
SHRA-220-WS	White	28.5	DC12V	C3	5
SHRA-220-BS	Blue	28.5	DC12V	BC	5
SHRA-270-RS-24V	Red	34	DC12V		6
SHRA-270-WS-24V	White	34	DC12V		6
SHRA-270-BS-24V	Blue	34	DC12V		6
SHRA-350-RS-24V	Red	44	DC24V		7
SHRA-350-WS-24V	White	44	DC24V		7
SHRA-350-BS-24V	Blue	44	DC24V		7

*NOTE: SAG value is the maximum voltage set value under the overdrive power supply.
