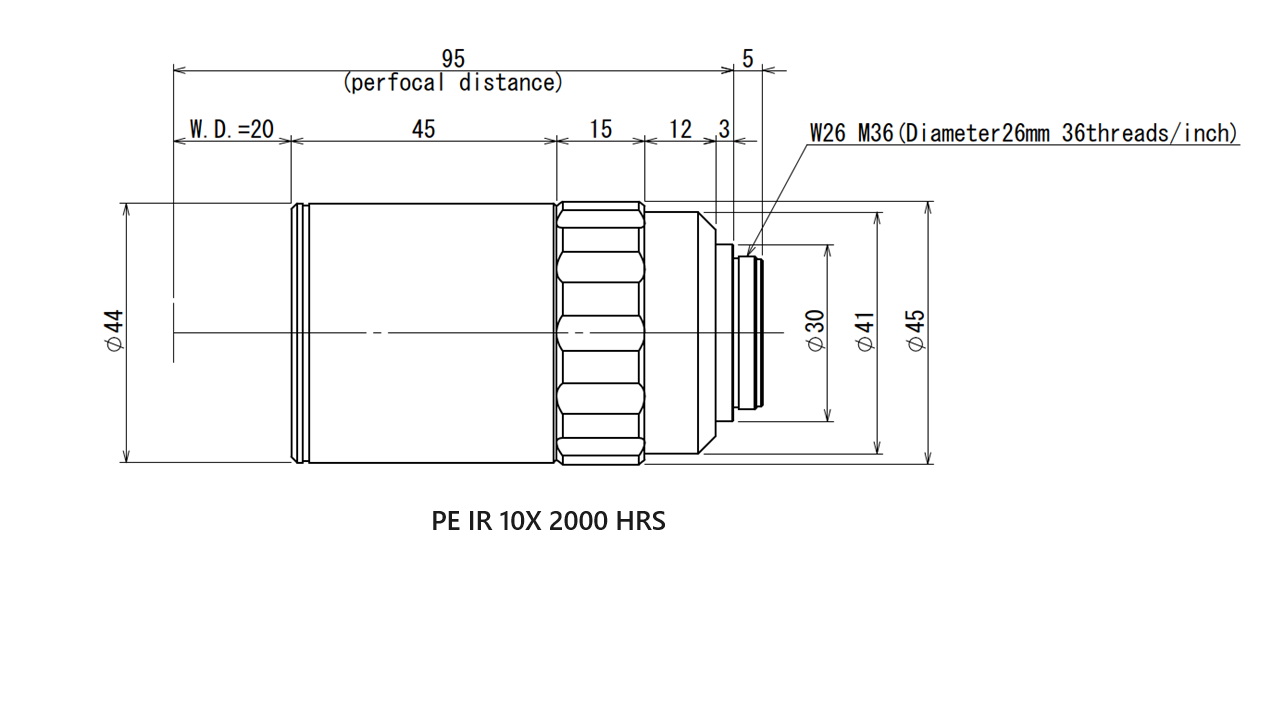

PE IR 10X 2000 HRS



Model PE IR Plan 10X 2000HRS PEIR Plan 20X 2000HR PEIR Plan 50X 2000HR
Magnification 10X 20X 50X
Working distance 20mm 10mm 10mm
Focal distance(f) 20mm 10mm 4mm
N.A 0.33 0.6 0.7
Resolving power 2.9um 1.6um 1.4um
Focal depth(±D.F) 7.1um 2.1um 1.5um
Transmission over 70% 1000 – 2100nm 1000 – 2000nm  1000 – 2000nm
Weight 490g 610g 560g

NOTE: Resolving power and focal depth are calculated by using the parameter of wavelength (λ=1.55um).
R = 0.61 x 1.55/ N.A         Focal depth ±D(um) = λ/[2(N.A)²]
